How Long Does Sprinkler Installation Take 2026? (Complete Timeline)
If you are planning a new sprinkler system this year, one of the first questions you will ask is simple: how long does sprinkler installation take? At Waterworks Sprinklers in Crosby, we get this question every single week. The honest answer is that MOST installations take one to three days, but the real timeline depends on a handful of factors we will break down below.
We have installed systems across Crosby, Houston, Baytown, and beyond, so we know how much yard size, soil, and design complexity can shift the schedule. Here is a complete 2026 timeline to help you plan ahead and set realistic expectations.

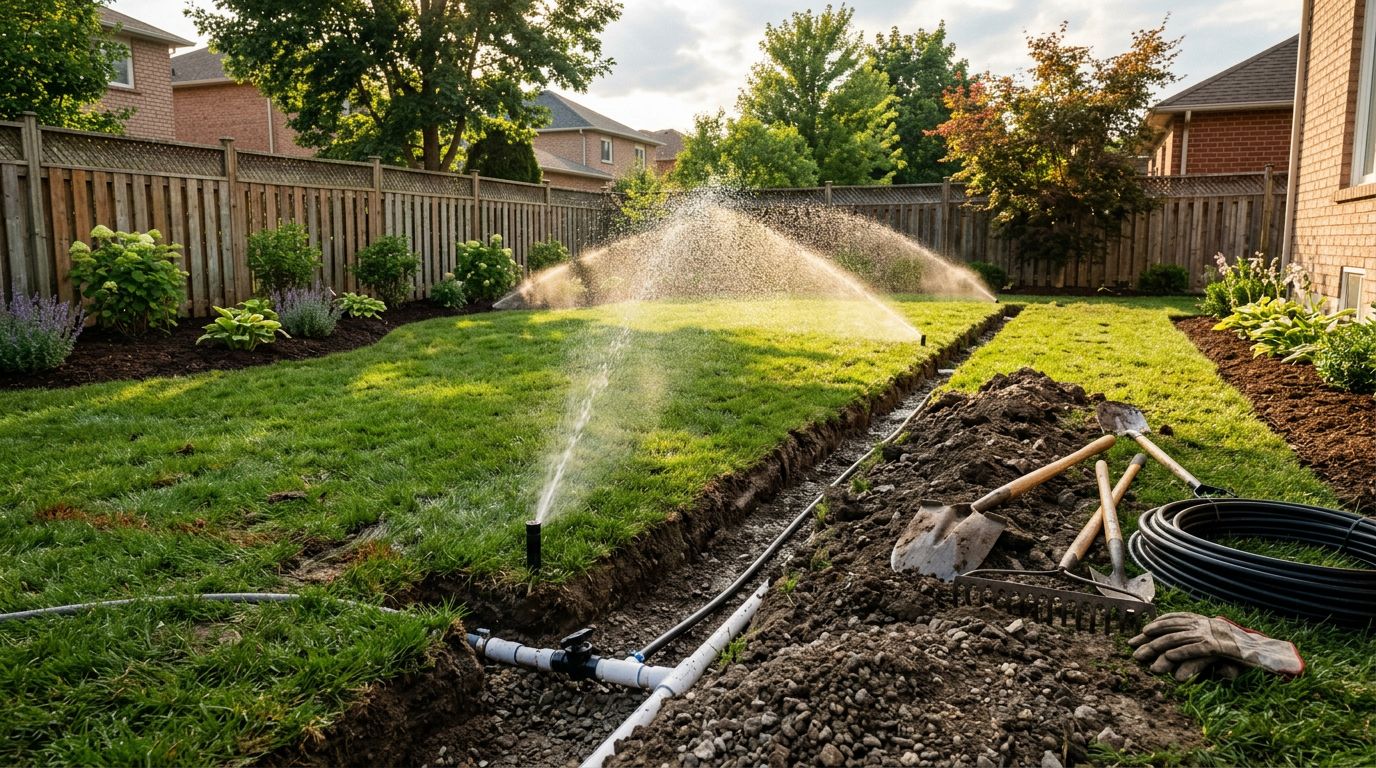

Average Sprinkler Installation Timeline by Yard Size
Yard size is the biggest driver of how long your project will take. A small city lot moves fast. A large property with multiple zones and complex landscaping takes longer. Most residential jobs wrap up in a single day, but bigger yards can stretch into two or three days of work. Before you budget your time, it also helps to understand the average cost of sprinkler installation in Texas so your timeline and budget line up together.
| Yard Size | Approximate Zones | Typical Installation Time |
|---|---|---|
| Small (under 5,000 sq ft) | 2 to 3 zones | 1 day |
| Medium (5,000 to 10,000 sq ft) | 4 to 6 zones | 1 to 2 days |
| Large (10,000 to 20,000 sq ft) | 6 to 9 zones | 2 to 3 days |
| Extra Large (over 20,000 sq ft) | 10+ zones | 3+ days |

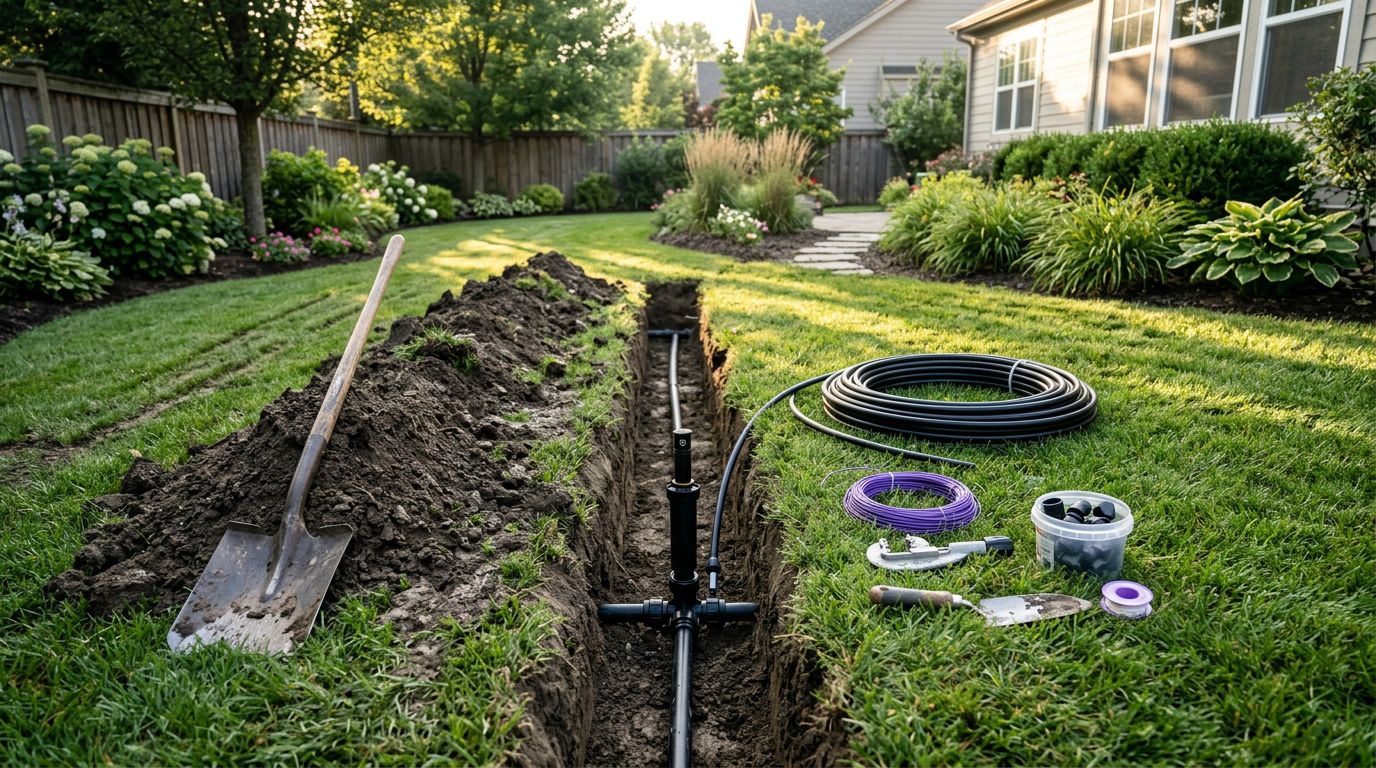

What Factors Affect Sprinkler Installation Time?
No two yards are identical. Two homes on the same street can have very different install times depending on what is under the surface and how the property is laid out. Here are the main factors that speed up or slow down a job.
- Yard size and shape – More square footage means more trenching, more pipe, and more heads.
- Number of zones – Each zone adds valves, wiring, and testing time.
- Soil type – Rocky or clay-heavy soil is tougher to trench than soft loam.
- Landscaping obstacles – Trees, patios, garden beds, and existing hardscape slow things down.
- Design complexity – Custom coverage for oddly shaped areas takes extra planning.
- Weather – Rain and saturated ground can push a project back a day or more.
- Water source and backflow setup – Connecting to the main line adds time depending on access.

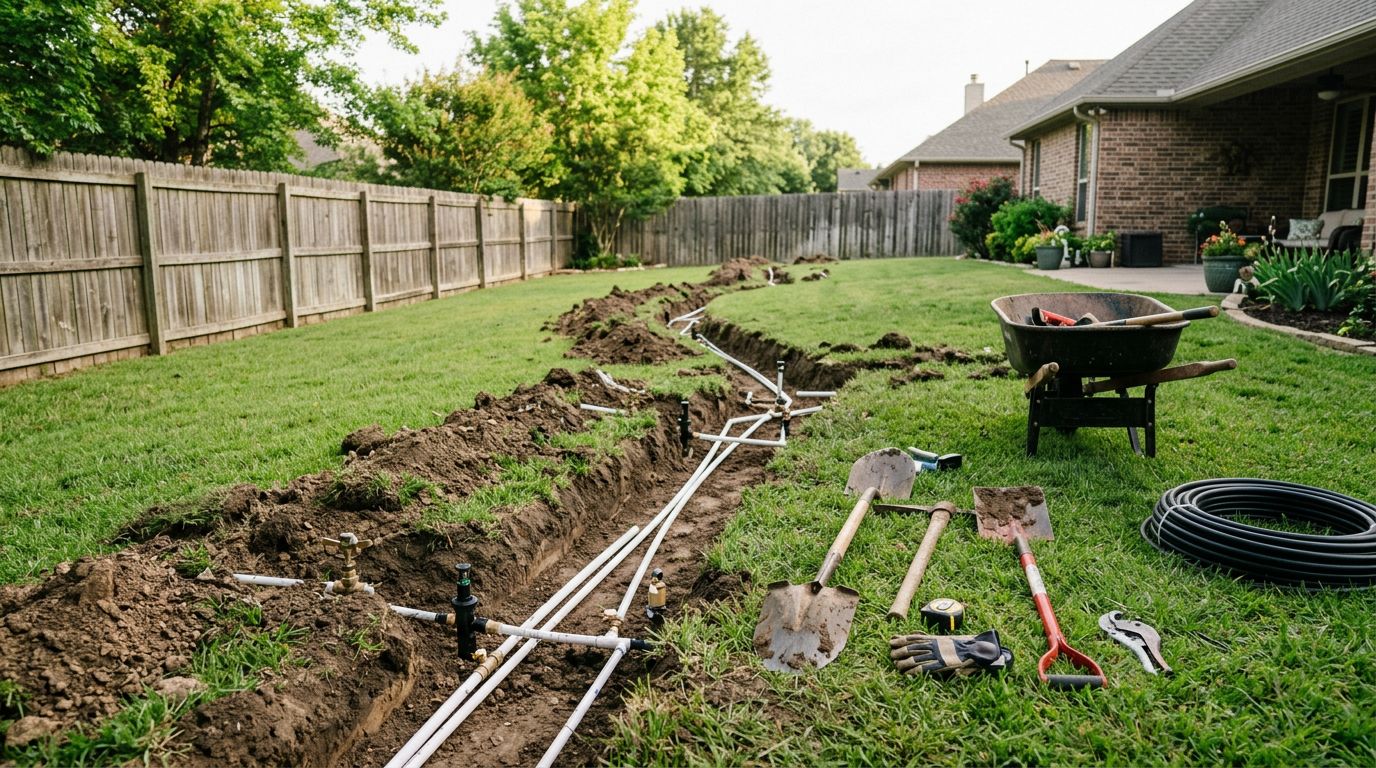

Step-by-Step Sprinkler Installation Process and Duration
We follow a clear process on every job so nothing gets missed. Here is what a typical installation looks like from start to finish, along with rough timing for each stage.
- Site walk and design (1 to 2 hours) – We map out zones, water pressure, and coverage before any digging begins.
- Marking utilities (varies) – Underground lines get located and flagged for safety. This may happen on a prior day.
- Trenching (2 to 5 hours) – We dig the trenches for pipe throughout the yard.
- Laying pipe and wiring (3 to 6 hours) – Pipe, valves, and control wiring go into the trenches.
- Installing heads and the controller (2 to 4 hours) – Sprinkler heads are set to grade and the control panel is mounted.
- Connecting the water source (1 to 3 hours) – The system ties into your supply, including backflow protection.
- Testing and adjusting (1 to 2 hours) – We run every zone, check coverage, and fine-tune each head.
- Backfill and cleanup (1 to 3 hours) – Trenches get filled, grass is replaced, and the site is cleaned up.
How Long Does DIY vs Professional Sprinkler Installation Take?
Some homeowners consider tackling a sprinkler system themselves. It is possible, but the timeline looks VERY different from a professional job. A pro crew works fast because they have the tools, the experience, and a repeatable process. If you want a smooth and quick install, our team handles sprinkler installation in Houston, TX and the surrounding areas from start to finish.
DIY Installation Timeline
A do-it-yourself install usually takes a WEEKEND or longer for a small yard, and often several weekends for anything bigger. First-timers spend a lot of time learning as they go. Renting a trencher, planning zones, and troubleshooting pressure issues all eat into your schedule. Mistakes can add days of rework.
Professional Installation Timeline
A professional crew typically finishes the same small yard in a single day. Medium and large properties take one to three days. Because the design, trenching, and testing follow a proven workflow, there are fewer surprises and far less downtime. You also get a system that is dialed in for even coverage from day one.
Do Permits and Inspections Add Time to Installation?
In many areas, sprinkler systems require a permit and a backflow inspection. This is meant to protect your drinking water supply. Permits do not always slow the actual install, but they can add lead time before the work starts. Modern systems have come a long way too, and you can see how far the technology has advanced in the latest sprinkler system technology trends and innovations.
- Permit approval – Depending on the city, this can take a few days to a couple of weeks.
- Backflow prevention – Required in most municipalities to keep irrigation water out of the potable supply.
- Post-install inspection – A city inspector may need to verify the backflow device after the system is up.
- Scheduling windows – Inspector availability can add a day or two to the overall project.
Common Delays That Extend Sprinkler Installation
Even a well-planned install can hit a snag. Most delays are outside anyone’s control, but knowing about them ahead of time helps you stay flexible. Here are the delays we see most often.
- Rain and wet ground – Saturated soil makes trenching messy and can pause work entirely.
- Rocky or hard soil – Tough ground slows trenching and adds hours.
- Unmarked utilities – Hitting a hidden line means stopping to reroute safely.
- Permit backlogs – Slow approvals push the start date back.
- Low water pressure – Pressure issues may require design changes mid-project.
- Landscaping surprises – Buried debris, old pipes, or roots can complicate trenching.
- Material availability – Occasionally a specific part or head has to be sourced.
Conclusion
Most sprinkler installations take one to three days, with small yards often finished in a SINGLE day. Yard size, soil, design complexity, permits, and weather all shape the final timeline. A professional crew keeps things moving fast and gets your coverage right the first time, while a DIY project can stretch across several weekends.
If you are ready to plan your new system in Crosby, Houston, Baytown, or any of our nearby service areas, reach out to Waterworks Sprinklers and let our team map out a timeline that fits your property.
